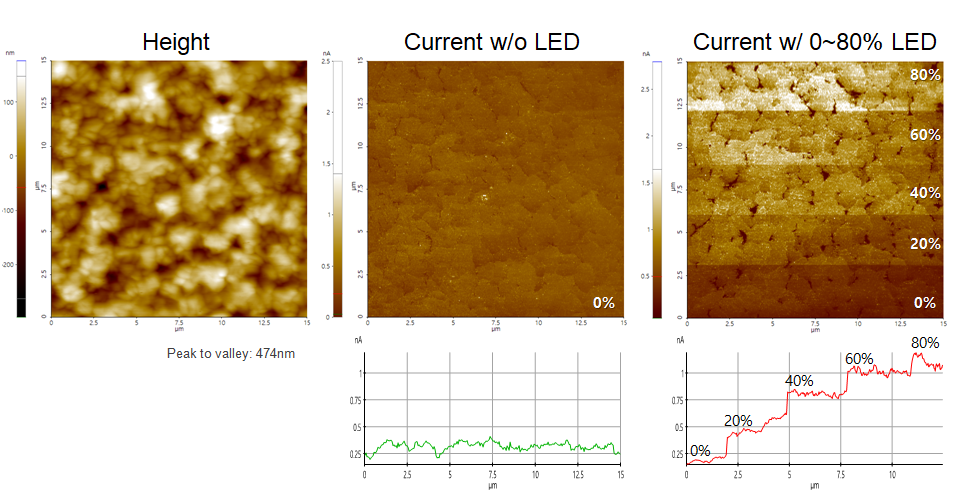

Formamidinium Lead Iodide FAPbI3 Perovskite Film
FAPbI3 is an organic-inorganic hybrid perovskite material for nowadays high efficiency perovskite solar cell.
Scanning Conditions
- System: NX10
- Scan Mode: Conductive AFM
- Cantilever: CDT-NCHR (k=80N/m, f=400kHz)
- Scan Size: 15μm×15μm
- Scan Rate: 0.5Hz
- Pixel Size: 512 × 256
- Scan Mode: Conductive AFM
- Cantilever: CDT-NCHR (k=80N/m, f=400kHz)
- Scan Size: 15μm×15μm
- Scan Rate: 0.5Hz
- Pixel Size: 512 × 256
